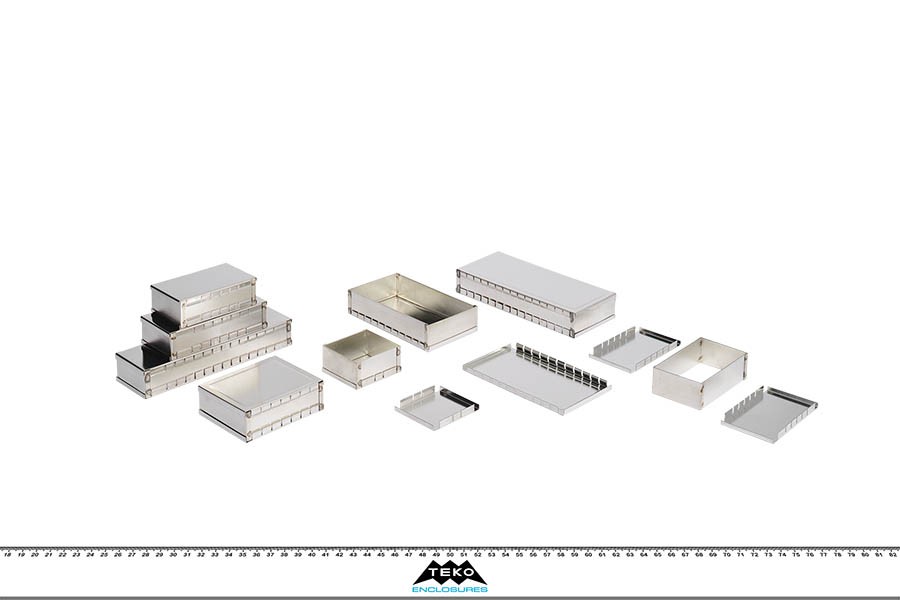

27-29

Color (Ral): &nbsp;-&nbsp
Material: <a href="/uploads/manuali/materiali/DC01.pdf" target="_blank" alt=". HOT TIN PLATED STEEL . . ." title=". HOT TIN PLATED STEEL . . ."> DC01
MAX PCB L (mm): -
MAX PCB W (mm): -
Screws: -
Battery: -
Accessories:
Drawings: &nbsp; PDF &nbsp; DWG

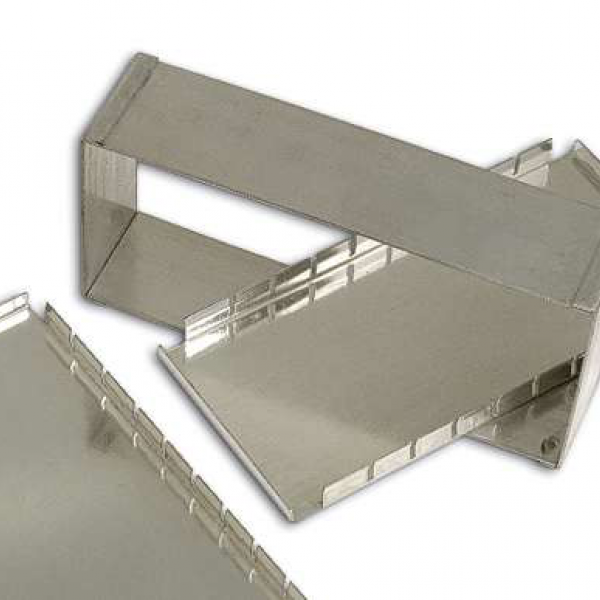

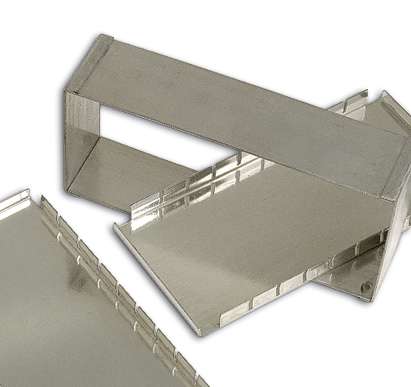

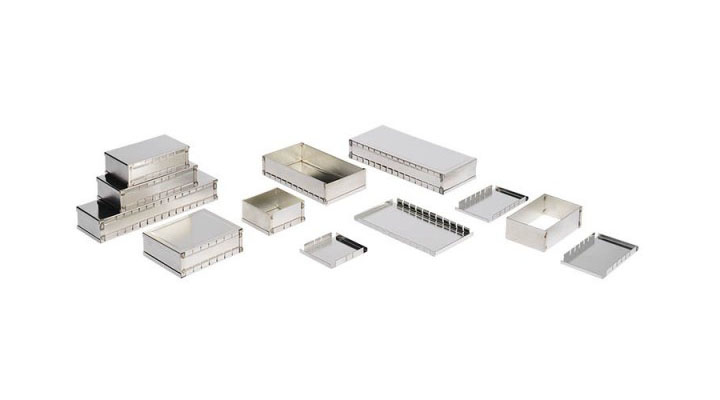

A hot tin-plated steel enclosure with two Snap-On, finger-flanged lids to allow access from top and bottom case.

Model	L (mm)	W (mm)	H (mm)	Color (Ral)	Material	MAX PCB L (mm)	MAX PCB W (mm)	Screws	Battery	Other

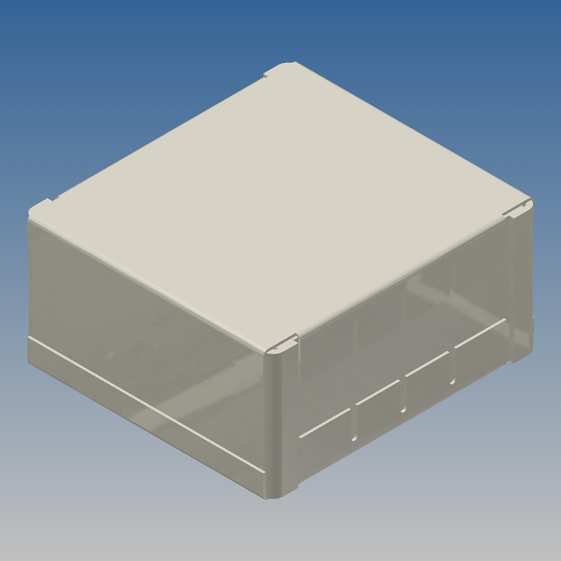

271.16	54	50	26	-	DC01	-	-	-	-	View Color (Ral): - Material: DC01 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

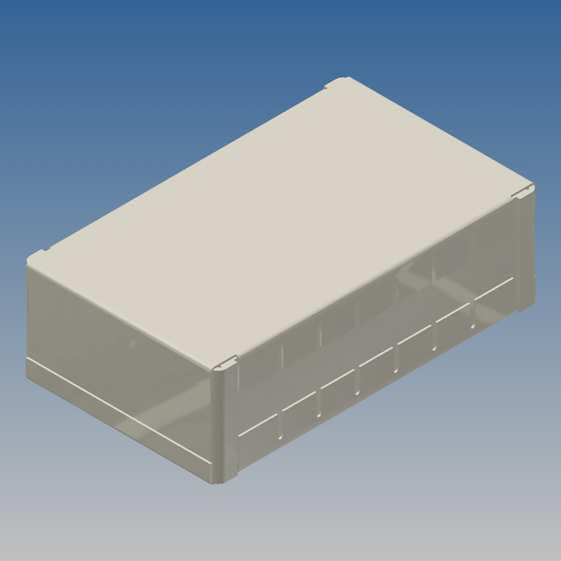

272.16	83	50	26	-	DC01	-	-	-	-	View Color (Ral): - Material: DC01 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

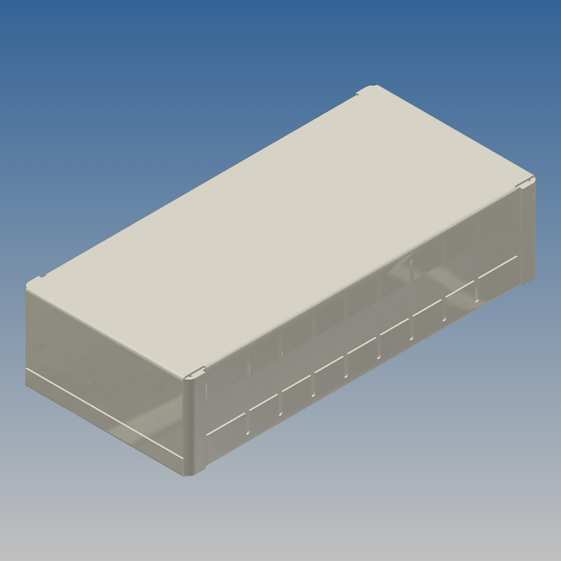

273.16	106	50	26	-	DC01	-	-	-	-	View Color (Ral): - Material: DC01 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

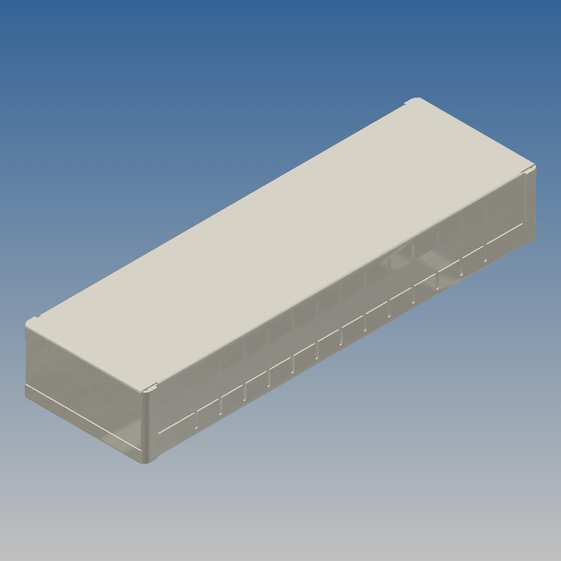

274.16	161	50	26	-	DC01	-	-	-	-	View Color (Ral): - Material: DC01 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

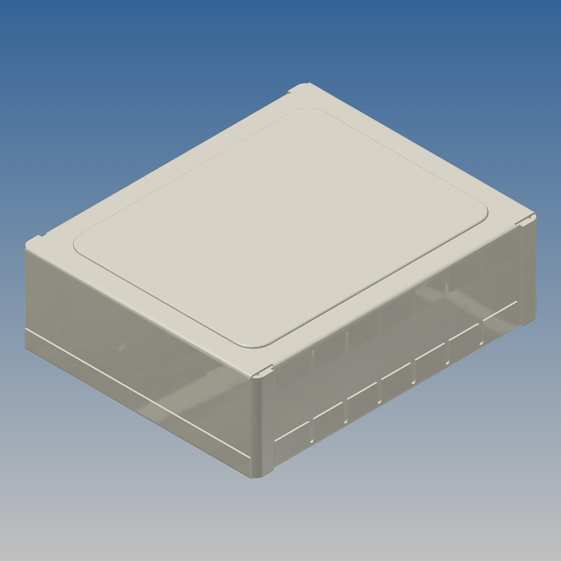

292.16	83	68	27	-	DC01	-	-	-	-	View Color (Ral): - Material: DC01 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

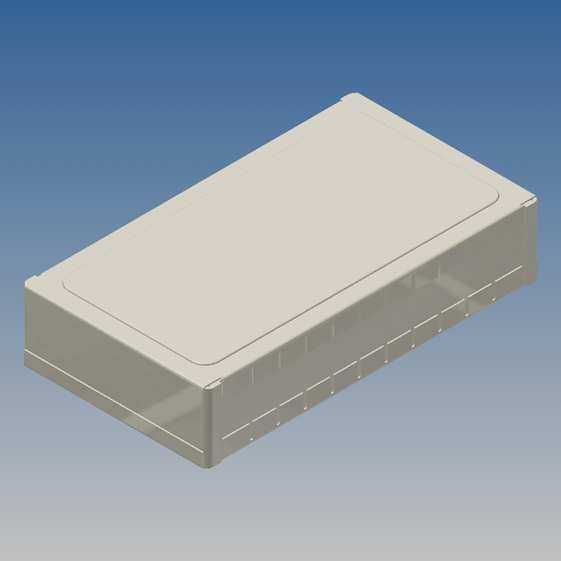

293.16	122	68	27	-	DC01	-	-	-	-	View Color (Ral): - Material: DC01 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG

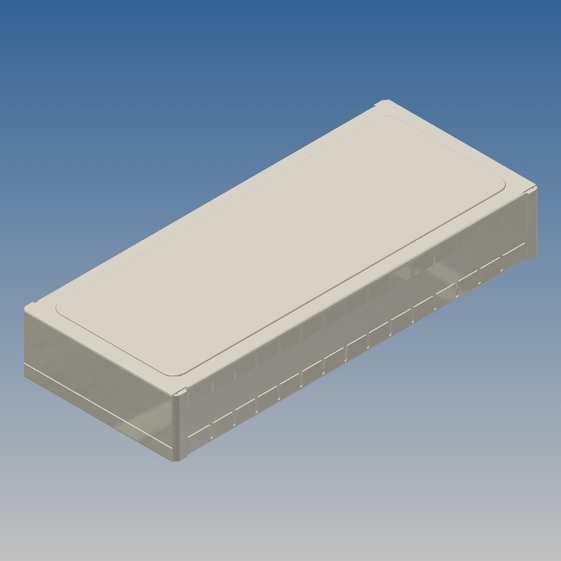

294.16	161	68	27	-	DC01	-	-	-	-	View Color (Ral): - Material: DC01 MAX PCB L (mm): - MAX PCB W (mm): - Screws: - Battery: - Accessories: Drawings: PDF DWG
